FloPlast Compression Fittings

FloPlast Compression Fittings are easy to install and use. For use above and below ground.



Specifications

· Materials of Construction
Body & Nut: Polypropylene (UV Resistant)
O-ring: EPDM
Compression Ring: Polypropylene
Clamping Ring: Polyacetal
FNPT Reinforcement Ring: Stainless Steel

·Pressure Ratings
1/2” - 2”: 232psi @ 68°F
3” - 4”: 145psi @ 68°F

· Temperature Rating 176°F Maximum

floplast fitting

disassembled floplast fitting

Operation

· As the nut tightens, it pushes the compression ring against the O-ring creating a hydraulic seal on the pipe wall.
· The clamping ring firmly grips down on the pipe wall holding it securely and preventing the pipe from pulling out.




FloPlast IPS Male Adapters (SDR IPS HDPE PIPE ONLY)
from $7.10 USD

FloPlast IPS Male Adapters (SDR IPS HDPE PIPE ONLY)

Compression Fittings are manufactured from high performance thermoplastic materials which resist corrosion and offer impact, UV, and chemical resis...

View full details
from $7.10 USD

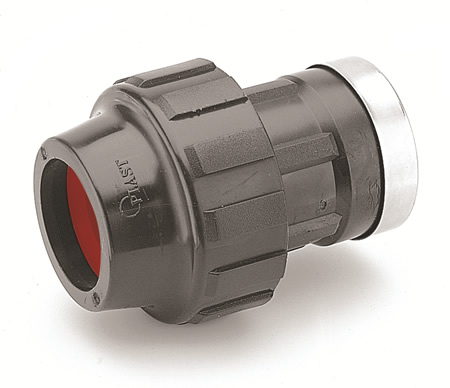

FloPlast IPS Female Adapters (SDR IPS HDPE PIPE ONLY)
from $8.98 USD

FloPlast IPS Female Adapters (SDR IPS HDPE PIPE ONLY)

IPS Female NPT Threaded Adapters Compression Fittings are manufactured from high performance thermoplastic materials which resist corrosion and off...

View full details
from $8.98 USD
FloPlast IPS Couplings (SDR IPS HDPE PIPE ONLY)
from $10.87 USD

FloPlast IPS Couplings (SDR IPS HDPE PIPE ONLY)

Compression Fittings are manufactured from high performance thermoplastic materials which resist corrosion and offer impact, UV, and chemical resis...

View full details
from $10.87 USD
FloPlast Compression 90 Elbows (SDR IPS HDPE PIPE ONLY)
from $11.02 USD

FloPlast Compression 90 Elbows (SDR IPS HDPE PIPE ONLY)

Compression Fittings are manufactured from high performance thermoplastic materials which resist corrosion and offer impact, UV, and chemical resis...

View full details
from $11.02 USD

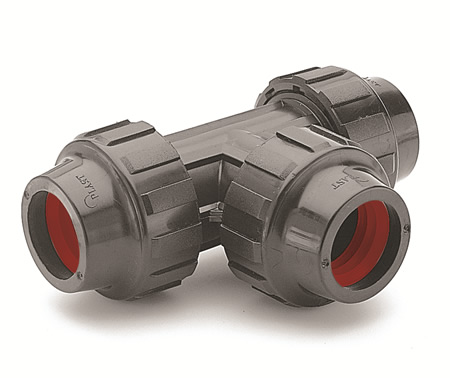

FloPlast IPS 90 TEES (SDR IPS HDPE PIPE ONLY) Sale
from $16.59 USD

FloPlast IPS 90 TEES (SDR IPS HDPE PIPE ONLY)

Compression Fittings are manufactured from high performance thermoplastic materials which resist corrosion and offer impact, UV, and chemical resis...

View full details
from $16.59 USD
Sale

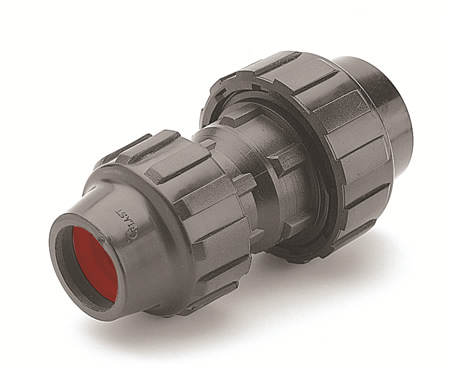

FloPlast IPS Reducing Coupling (SDR IPS HDPE PIPE ONLY)
from $19.53 USD

FloPlast IPS Reducing Coupling (SDR IPS HDPE PIPE ONLY)

Compression Fittings are manufactured from high performance thermoplastic materials which resist corrosion and offer impact, UV, and chemical resis...

View full details
from $19.53 USD
FloPlast IPS Reducing Tees (SDR IPS HDPE PIPE ONLY)
from $20.67 USD

FloPlast IPS Reducing Tees (SDR IPS HDPE PIPE ONLY)

Compression Fittings are manufactured from high performance thermoplastic materials which resist corrosion and offer impact, UV, and chemical resis...

View full details
from $20.67 USD

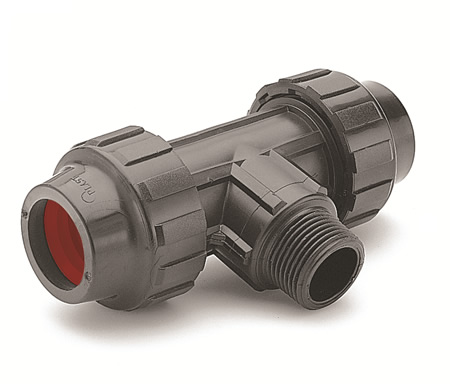

FloPlast 90 Tee x Threaded Male Offtake (SDR IPS HDPE PIPE ONLY)
from $24.00 USD

FloPlast 90 Tee x Threaded Male Offtake (SDR IPS HDPE PIPE ONLY)

Compression Fittings are manufactured from high performance thermoplastic materials which resist corrosion and offer impact, UV, and chemical resis...

View full details
from $24.00 USD

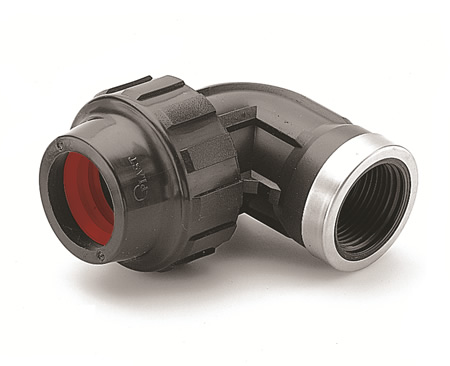

FloPlast Compression 90 Elbows x Threaded Female Offtake (SDR IPS HDPE PIPE ONLY)
from $12.00 USD

FloPlast Compression 90 Elbows x Threaded Female Offtake (SDR IPS HDPE PIPE ONLY)

Compression Fittings are manufactured from high performance thermoplastic materials which resist corrosion and offer impact, UV, and chemical resis...

View full details
from $12.00 USD

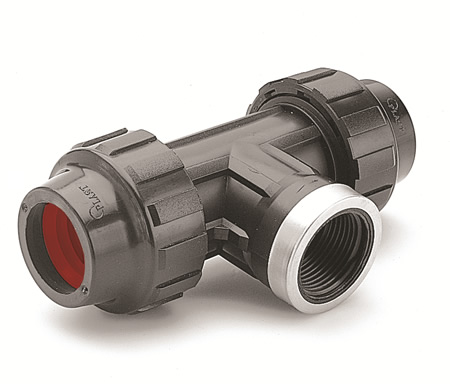

FloPlast IPS Compression x Threaded Female Offtake Tees(SDR IPS HDPE PIPE ONLY)
from $14.08 USD

FloPlast IPS Compression x Threaded Female Offtake Tees(SDR IPS HDPE PIPE ONLY)

Compression Fittings are manufactured from high performance thermoplastic materials which resist corrosion and offer impact, UV, and chemical resis...

View full details
from $14.08 USD
FloPlast 1-1/2" x 3 /4" Female NPT  IPS Saddle Clamp  (SDR IPS HDPE PIPE ONLY)
$21.75 USD

FloPlast 1-1/2" x 3 /4" Female NPT IPS Saddle Clamp (SDR IPS HDPE PIPE ONLY)

The 1-1/2" Female NPT IPS Saddle Clamp will only fit on 1-1/2" SDR IPS HDPE pipe. Easy to use and install. Tap anywhere along your length of pipe, ...

View full details
$21.75 USD
FloPlast 1-1/2" x 3 /4" Female NPT Reinforced IPS Saddle Clamp (SDR IPS HDPE PIPE ONLY)
$25.17 USD

FloPlast 1-1/2" x 3 /4" Female NPT Reinforced IPS Saddle Clamp (SDR IPS HDPE PIPE ONLY)

The 1-1/2" Female Reinforced NPT IPS Saddle Clamp will only fit on 1-1/2" SDR IPS HDPE pipe. Easy to use and install. Tap anywhere along your lengt...

View full details
$25.17 USD
FloPlast 2" Female NPT Reinforced IPS Saddle Clamps (SDR IPS HDPE PIPE ONLY)
$32.00 USD

FloPlast 2" Female NPT Reinforced IPS Saddle Clamps (SDR IPS HDPE PIPE ONLY)

The 2" Female NPT Reinforced IPS Saddle Clamp will only fit on 2" SDR IPS HDPE pipe. Easy to use and install. Tap anywhere along your length of pip...

View full details
$32.00 USD
Banjo Threaded Bushing MNPT x FNPT
from $3.75 USD

Banjo Threaded Bushing MNPT x FNPT

These bushings are commonly used to reduce the female thread size of a compression fitting to match the 3/4" MNPT size of a Plasson Quick-Coupler V...

View full details
from $3.75 USD

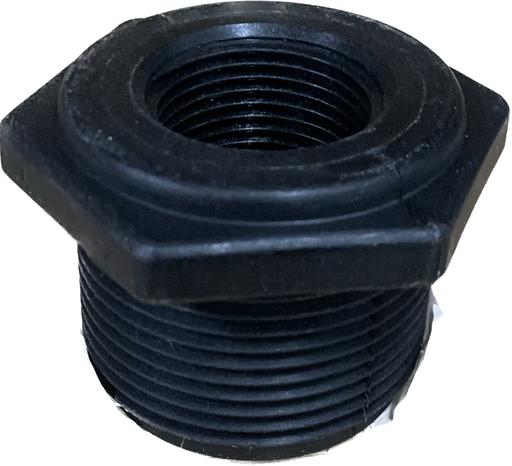

1-1/2" x 3 /4" Reducing Bush - PP Threaded Fitting (SDR IPS HDPE PIPE ONLY)
$4.75 USD

1-1/2" x 3 /4" Reducing Bush - PP Threaded Fitting (SDR IPS HDPE PIPE ONLY)

1-1/2" x 3 /4" Reducing Bushing - PP Threaded Fitting

$4.75 USD
