Speedrite 1000, 1 Joule, 12v Solar Package w/ Dolly (battery not included)
Solar Package includes:
- Speedrite 1000/Stafix X1 Unigizer, 1 Joule, Dual-Powered AC & DC
- 10 Watt Solar Panel
- 10 Amp Waterproof Charge Controller
- 24" Battery Cable
- Solar Dolly
- USER MANUAL

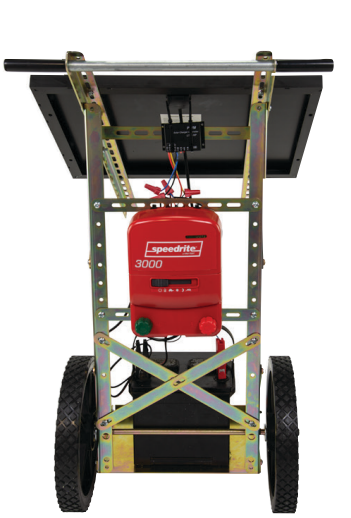

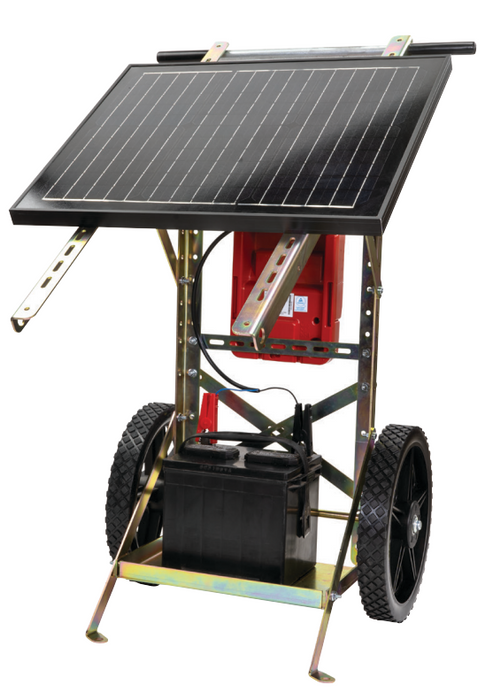

Note: Unit shown below is the 3000 solar setup with 30-watt panel. A 10-watt solar panel is smaller and the Speedrite 1000 unigizer is the same physical size as the 3000.
User instructions included for Unigizer, Solar Panel, Charge Controller & Solar Dolly.
You will need to purchase a deep-cycle marine battery with around a 50 amp hour storage. If reserve capacity is all that is given on the battery, multiply the RC by .4167 to determine amp hour storage.
Tip: If you can buy a true deep-cycle battery rather than the marine/rv hybrid battery then do that.
We recommend at least 3' of galvanized ground rod (1/2"-5/8" diameter) to properly ground this system for maximum shock.
This system can efficiently energize(6-10kv) up to 1 miles of 9-strand mixed-metals Polybraid, single strand and ~ 3 miles of 12.5 ga hi-tensile. Results do vary depending on the quality of grounding system, soil conductivity, soil type, moisture content, etc,..
Feel free to contact us if you need any help!
