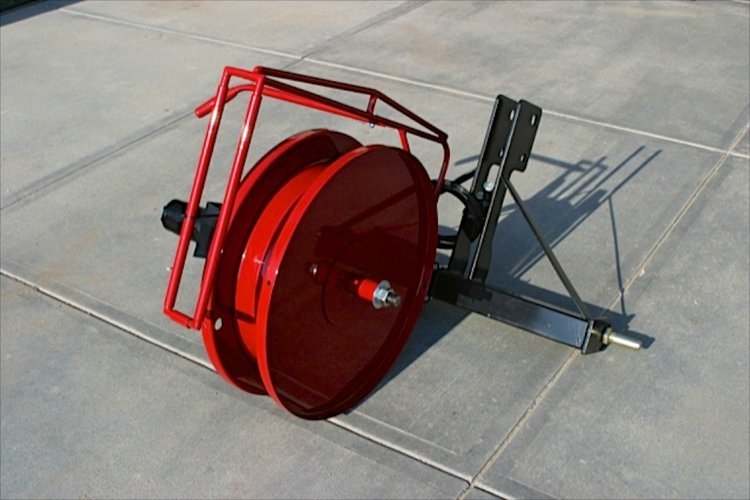

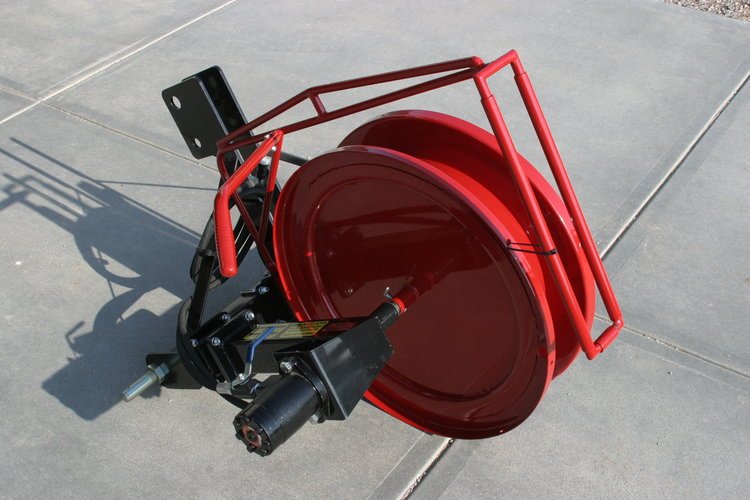

Hydraulic Wire Winder with High Tensile Reel - Tractor Mount Cat. 1, 2, & 3 Narrow
You do not need to have a Wire Guide as shown in these pictures on the left to make it work, but it is a very popular option that makes the job much easier. If you’d like one, remember when ordering to add the Wire Guide Arm with your wire winder.
![]() |

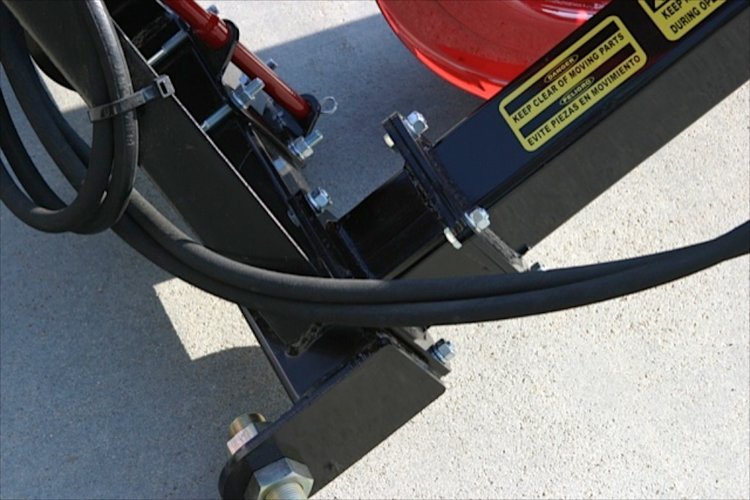

Hotwood's High Tensile Wire Winder was designed to be used with high tensile wire. The High Tensile Kit can be adapted to any of our 3 point wire winders that have the bolt-on motor mount arm. If you have an older unit with the arm welded to the toolbar, you can still add this kit to your wire winder with a little fabrication on your end by doing a small amount of cutting and welding. |

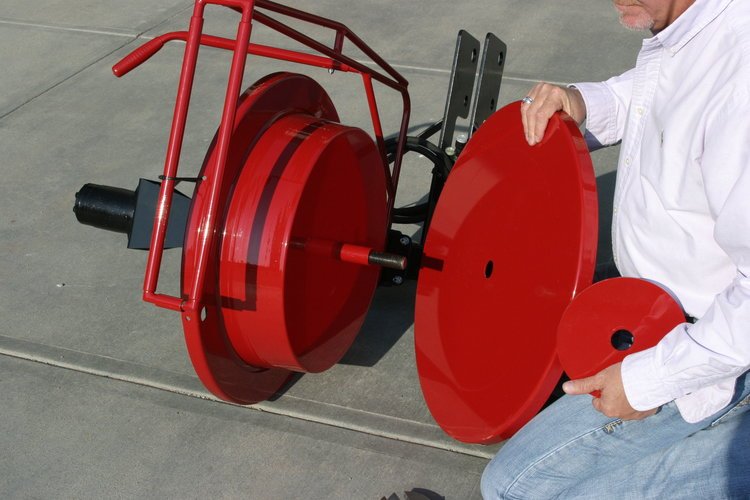

Features Reel: – Splits to Load and Unload Rolls of Wire – Designed to Unroll New Rolls of High Tensile Wire – Has One Larger Access Hole to Use as a Tie Off Before Starting to Pull Wire – 4 Tie Wire Locaters on Each Side of the Reel (just like the Yellow Split Reel) to Place your Tie Wires in prior to Rolling Wire – Spun from Solid Steel to Assure the Highest Quality Manufacturable – Painted with Premium Powder Coat Paint to Assure the Finest Finish – Functions and Operates Exactly like our Other Hydraulic Units. (Place a weight on the end of the wire before you begin rolling, then park your tractor in one spot and pull the wire toward you) – The Optional Wire Guide is manufactured from solid steel, with pipe rollers to make pulling that wire in and guiding it with the handle a very safe and easy function – UPS Shippable (Unassembled)
|
Details Reel: – Diameter: 25’ – Weight (Empty): 51 lbs. – Spacing: 4 ¾’’ Wide – Tapered from 19” to 18 ¼” to make sliding wire on and off easier – Fits on standard 1” shaft that is used on our wire winders |

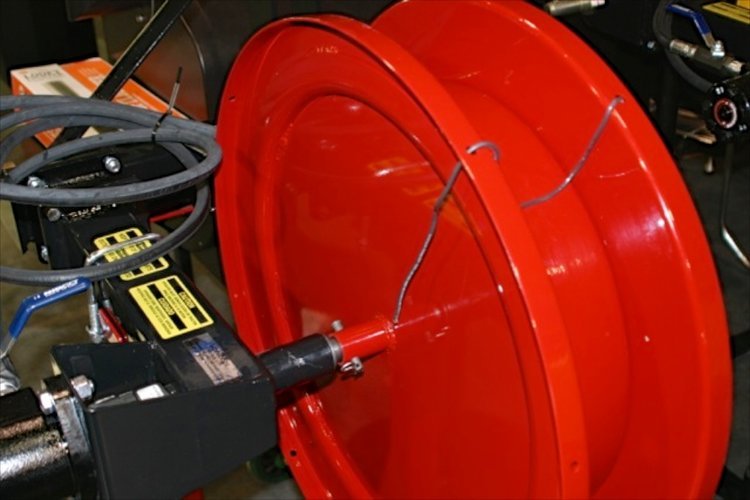

Shown below, the reel has 4 tie wire locaters on each side of the reel (just like the yellow split reel) to place your tie wires in prior to rolling wire.
